Triton24.02 部署TensorRT-LLM,实现http查询

选择正确的环境

1. 选择版本。查询nvidia官方文档，可以看到目前最新的容器是24.02。

• 在NVIDIA Driver这一行，它推荐的英伟达驱动版本是545以上，对于数据卡，可以适当降低。如果你是游戏卡，驱动版本没有545，也不想升级，那么建议至少不要低太多，比如535其实也可以。

• 在Triton Inference Server这一行，可以看到它内置了triton server版本是2.43，需要的TensorRT-LLM版本是0.8.0。

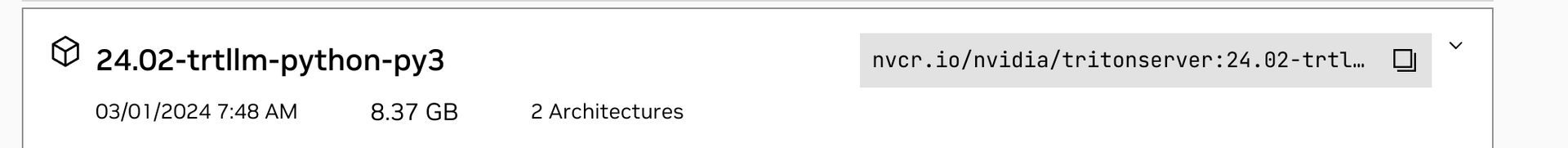

2. 拉取镜像。进入Nvidia镜像中心找到tritonserver的镜像，选择和TensorRT-LLM（简称trtllm）有关的容器，然后拷贝镜像地址，最后使用docker pull来拉取该镜像。


docker pull nvcr.io/nvidia/tritonserver:24.02-trtllm-python-py3

3. 拉取TensorRT-LLM的项目。

• 可以选择官方项目，但是注意要是v0.8.0

git clone https://github.com/NVIDIA/TensorRT-LLM.git -b v0.8.0

• 也可以选择我的项目，目前main分支就是0.8.0，后续可能会打成tag，建议实际访问项目地址，查看是否有0.8.0的tag。

git clone https://github.com/Tlntin/Qwen-TensorRT-LLM

• 下面演示是以我的项目为主，在triton_server上面部署Qwen-1.8B-Chat（毕竟这个模型比较小）

4. 拉取tensorrtllm_backend。这个是用来编排tensorrt-llm服务的，需要和TensorRT-LLM版本一致，这里同样选择0.8.0

git clone https://github.com/triton-inference-server/tensorrtllm_backend.git -b v0.8.0

5. 启动tritonserver容器

docker run -d \
    --name triton \
    --net host \
    --shm-size=2g \
    --ulimit memlock=-1 \
    --ulimit stack=67108864 \
    --gpus all \
    -v ${PWD}/tensorrtllm_backend:/tensorrtllm_backend \
    -v ${PWD}/Qwen-TensorRT-LLM/examples:/root/examples \
    nvcr.io/nvidia/tritonserver:24.02-trtllm-python-py3 sleep 864000

6. 检查服务

• 进入容器

docker exec -it triton /bin/bash

• 检查英伟达驱动

nvidia-smi

• 检查tritonserver版本，至少和上面提到的一样，是2.43

cat /opt/tritonserver/TRITON_VERSION

• 检查tensorrtllm_backend版本，该数值必须和官方github仓库的0.8.0版本的tool/version.txt文件内容一致，官方仓库链接

cat /tensorrtllm_backend/tools/version.txt

7. 直接通过pip安装TensorRT-LLM （如果是自己编译的容器，这步可以省略）

pip install tensorrt_llm==0.8.0 --extra-index-url https://pypi.nvidia.com --extra-index-url https://download.pytorch.org/whl/cu121

编译Engine

• 参考我项目的readme

1. 进入容器

docker exec -it triton /bin/bash

2. 重复之前的操作，安装qwen的依赖，编译Engine,推荐开启inflight-batching+smooth int8，参考命令

• 进入qwen目录

cd /root/examples/qwen

• 安装依赖

pip install -r requirements.txt

• 编译，下面是fp16部署的简单示例，设置batch_size=2，开启paged_kv_cache，方便部署inflight-batching

python3 build.py \
    --paged_kv_cache \
    --remove_input_padding \
    --max_batch_size=2

• 运行一下做个测试

python3 run.py

临时部署Triton

• 参考tensorrtllm_backend 0.8.0的readme
• 同时参考llama的详细部署教程

1. 进入容器

docker exec -it triton /bin/bash

2. 构建好目录

cd /tensorrtllm_backend
cp all_models/inflight_batcher_llm/ -r triton_model_repo

3. 复制上一部分编译好的Engine文件，复制完后需要做修改/tensorrtllm_backend/triton_model_repo/tensorrt_llm/1/config.json，将里面的max_output_len的数值换成new_token_len对应的数值，以当前项目为例，需要将6144换成2048，否则报错。

cd /root/examples/qwen2/trt_engines/fp16/1-gpu/
cp -r ./* /tensorrtllm_backend/triton_model_repo/tensorrt_llm/1/

4. 复制tokenzer文件

cd /root/examples/qwen2
cp -r qwen1.5_7b_chat /tensorrtllm_backend/triton_model_repo/tensorrt_llm/

# 删除tokenizer目录的Huggingface模型文件（可选）
rm /tensorrtllm_backend/triton_model_repo/tensorrt_llm/qwen1.5_7b_chat/*.safetensors

5. 编写Triton中的预处理配置和后处理配置， 参考文档

cd /tensorrtllm_backend
export HF_QWEN_MODEL="/tensorrtllm_backend/triton_model_repo/tensorrt_llm/qwen1.5_7b_chat"
export ENGINE_DIR="/tensorrtllm_backend/triton_model_repo/tensorrt_llm/1"
export MAX_BATCH_SIZE=2
export TOKENIZE_TYPE=auto
# 根据cpu线程数定，一般为batch_size的2倍数或者cpu线程的一半
export INSTANCE_COUNT=4
# 我就一张卡，你可以指定用那些卡，用逗号隔开
export GPU_DEVICE_IDS=0


python3 tools/fill_template.py -i triton_model_repo/preprocessing/config.pbtxt tokenizer_dir:${HF_QWEN_MODEL},tokenizer_type:${TOKENIZE_TYPE},triton_max_batch_size:${MAX_BATCH_SIZE},preprocessing_instance_count:${INSTANCE_COUNT}

python3 tools/fill_template.py -i triton_model_repo/postprocessing/config.pbtxt tokenizer_dir:${HF_QWEN_MODEL},tokenizer_type:${TOKENIZE_TYPE},triton_max_batch_size:${MAX_BATCH_SIZE},postprocessing_instance_count:${INSTANCE_COUNT}

python3 tools/fill_template.py -i triton_model_repo/tensorrt_llm_bls/config.pbtxt triton_max_batch_size:${MAX_BATCH_SIZE},decoupled_mode:False,bls_instance_count:${INSTANCE_COUNT},accumulate_tokens:True

python3 tools/fill_template.py -i triton_model_repo/ensemble/config.pbtxt triton_max_batch_size:${MAX_BATCH_SIZE}

python3 tools/fill_template.py -i triton_model_repo/tensorrt_llm/config.pbtxt triton_max_batch_size:${MAX_BATCH_SIZE},decoupled_mode:True,max_beam_width:1,engine_dir:${ENGINE_DIR},exclude_input_in_output:True,enable_kv_cache_reuse:False,batching_strategy:inflight_batching,max_queue_delay_microseconds:600,gpu_device_ids:${GPU_DEVICE_IDS}

6. 简单修改一下preprocess/postprocess的model.py的initialize函数，示例是llama的，我们要改成qwen的tokenizer配置。

• 修改前（preprocessing有三行，postprocessing只有一行）：

self.tokenizer.pad_token = self.tokenizer.eos_token
self.tokenizer_end_id = self.tokenizer.encode(
    self.tokenizer.eos_token, add_special_tokens=False)[0]
self.tokenizer_pad_id = self.tokenizer.encode(
    self.tokenizer.pad_token, add_special_tokens=False)[0]

• 修改后

import os


gen_config_path = os.path.join(tokenizer_dir, 'generation_config.json')
with open(gen_config_path, 'r') as f:
    gen_config = json.load(f)
if isinstance (gen_config["eos_token_id"], list):
    pad_id = end_id = gen_config["eos_token_id"][0]
### if model type is base, run this branch
else:
    pad_id = gen_config["bos_token_id"]
    end_id = gen_config["eos_token_id"]
self.tokenizer_pad_id = pad_id
self.tokenizer_end_id = end_id
eos_token = self.tokenizer.decode(end_id)
self.tokenizer.eos_token = self.tokenizer.pad_token = eos_token

7. 启动服务

cd /tensorrtllm_backend
python3 scripts/launch_triton_server.py --world_size=1 --model_repo=/tensorrtllm_backend/triton_model_repo

9. 另外开一个终端，测试一下http效果。

• 请求

curl -X POST localhost:8000/v2/models/ensemble/generate \
-d '{"text_input": "<|im_start|>system\nYou are a helpful assistant.<|im_end|>\n<|im_start|>user\n你好，你叫什么？<|im_end|>\n<|im_start|>assistant\n", "max_tokens": 100, "bad_words": "", "stop_words": "", "end_id": [151645], "pad_id": [151645]}'

• 输出结果

{"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"你好，我是来自阿里云的大规模语言模型，我叫通义千问。"}%

调用服务

python客户端请求

1. 安装python依赖（可选）

pip install tritonclient transformers gevent geventhttpclient tiktoken grpcio

2. 运行qwen/triton_client/inflight_batcher_llm_client.py文件即可开启

cd /root/examples/triton_client
python3 inflight_batcher_llm_client.py --tokenizer_dir=/tensorrtllm_backend/triton_model_repo/tensorrt_llm/qwen1.5_7b_chat

3. 测试结果

====================
Human: 你好
Output: 你好！有什么我可以帮助你的吗？
Human: 你叫什么？
Output: 我是来自阿里云的大规模语言模型，我叫通义千问。

http流式调用

1. 前提

• 编译的Engine开启了paged_kv_cache
• 部署triton时，tensorrt_llm/config.pbtxt里面的gpt_model_type对应的value为inflight_batching

2. 运行命令

curl -X POST localhost:8000/v2/models/ensemble/generate_stream \
-d '{"text_input": "<|im_start|>system\nYou are a helpful assistant.<|im_end|>\n<|im_start|>user\n你好，你叫什么？<|im_end|>\n<|im_start|>assistant\n", "max_tokens": 100, "bad_words": "", "stop_words": "", "end_id": [151645], "pad_id": [151645], "stream": true}'

3. 输出结果：

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":0.0,"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"你好"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"，"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"我是"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"来自"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"阿里"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"云"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"的大"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"规模"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"语言"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"模型"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"，"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"我"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"叫"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"通"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"义"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"千"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"问"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":"。"}

data: {"cum_log_probs":0.0,"model_name":"ensemble","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"sequence_end":false,"sequence_id":0,"sequence_start":false,"text_output":""}

关闭triton服务

pkill tritonserver

永久部署

1. 在上个容器部署时，我们启动的命令是python3 scripts/launch_triton_server.py --world_size=1 --model_repo=/tensorrtllm_backend/triton_model_repo，经过修改tensorrtllm_backend/scripts/launch_triton_server.py文件，倒数第二行增加一个print("cmd", cmd)在结尾打印出它真实运行的命令如下：

["mpirun", "--allow-run-as-root", "-n", "1", "/opt/tritonserver/bin/tritonserver", "--model-repository=/tensorrtllm_backend/triton_model_repo", "--grpc-port=8001", "--http-port=8000", "--metrics-port=8002", "--disable-auto-complete-config", "--backend-config=python,shm-region-prefix-name=prefix0_", ":"]

2. 编写一个Dockerfile来启动刚刚的命令，替换原来容器自带的命令。

FROM nvcr.io/nvidia/tritonserver:24.02-trtllm-python-py3
USER root
# Option
# COPY tensorrtllm_backend /tensorrtllm_backend
WORKDIR /tensorrtllm_backend

CMD ["mpirun", "--allow-run-as-root", "-n", "1", "/opt/tritonserver/bin/tritonserver", "--model-repository=/tensorrtllm_backend/triton_model_repo", "--grpc-port=8001", "--http-port=8000", "--metrics-port=8002", "--disable-auto-complete-config", "--backend-config=python,shm-region-prefix-name=prefix0_", ":"]

2. 编译新镜像，命名为tritonserver:24.02

docker build . -t tritonserver:24.02

3. 测试一下是否ok

docker run -it \
    --name triton_server \
    --net host \
    --shm-size=2g \
    --ulimit memlock=-1 \
    --ulimit stack=67108864 \
    -v ${PWD}/tensorrtllm_backend:/tensorrtllm_backend \
    --gpus all \
    tritonserver:24.02

• 测试一下请求，没问题就退出，然后删除该容器

docker rm -f triton_server

4. 永久开启该容器，设置后台启动，并且设置自动重启

docker run -d \
    --name triton_server \
    --net host \
    --shm-size=2g \
    --restart always \
    --ulimit memlock=-1 \
    --ulimit stack=67108864 \
    -v ${PWD}/tensorrtllm_backend:/tensorrtllm_backend \
    --gpus all \
    tritonserver:24.02

5. 查看一下这个容器运行情况，发现正常。

docker logs triton_server
